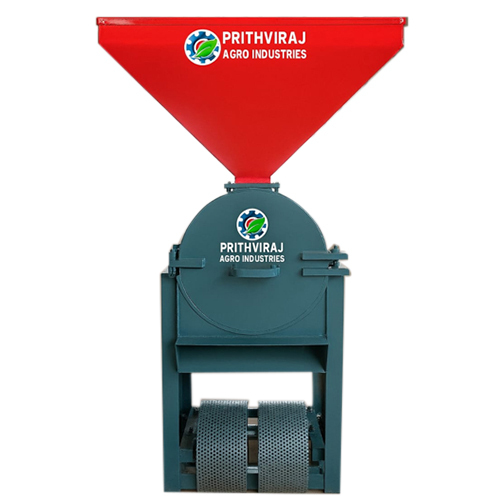

10 to 20 HP Poultry Feed Hammer Grinder Machine Three Phase Specification
- Model
- 10-20HP Three Phase
- Rotation
- Single Direction
- Product Type
- Poultry Feed Hammer Grinder Machine
- General Use
- Grinding and crushing poultry feed materials
- Capacity
- 300 to 1200 kg/hr
- Weight (kg)
- Approx. 600-850 kg
- Control System
- Manual/Panel operated
- Grinding Wheel Speed
- Highly robust rotor, 2800 RPM
- Grinding Length
- Variable, as per hopper design
- Floor Space
- Approx. 5ft x 3ft
- Voltage
- 415V, Three Phase
- Dimension (L*W*H)
- Approx. 1500mm x 900mm x 1100mm
- Feature
- Easy installation, high output, strong construction
- Belt Drive
- Heavy duty V-belt drive
- No. of Hammer Blades
- 16-24 (Depending on model)
- Service Support
- Onsite support available
- Motor Type
- Copper Winding Induction Motor
- Application
- Poultry, Cattle, and Livestock Feed Preparation
- Overload Protection
- Integrated electric panel
- Dust Collection
- Provision for cyclone/dust collector
- Safety Feature
- Emergency stop switch
- Discharge Size
- Fine powder 1-5mm adjustable
- Maintenance
- Low maintenance design
- Lubrication System
- Grease cup type
About 10 to 20 HP Poultry Feed Hammer Grinder Machine Three Phase
Hammer Grinder Machine is a high performance industrial equipment designed for grinding, crushing, and pulverizing various materials efficiently. It operates using a series of rotating hammers that strike the material, breaking it into fine particles. This machine is widely used in industries such as agriculture, food processing, pharmaceuticals, and chemical manufacturing. It is ideal for grinding grains, spices, biomass, minerals, and other hard or fibrous materials. The machine features a durable construction with heavy duty steel components to ensure long service life and consistent performance. It comes with an easy to operate mechanism, low maintenance design, and high output efficiency. The hammer grinder provides uniform particle size distribution and can be customized with different screen sizes as per the application requirements. It is energy efficient and suitable for both small scale and large scale operations.
